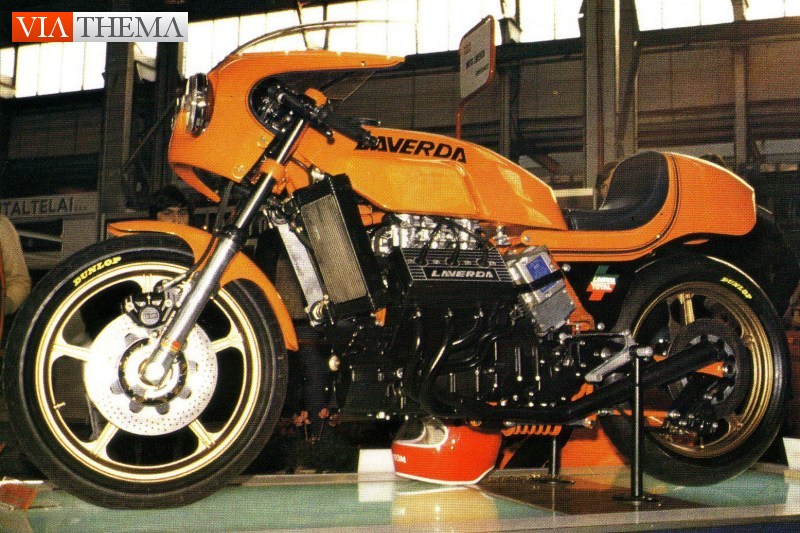

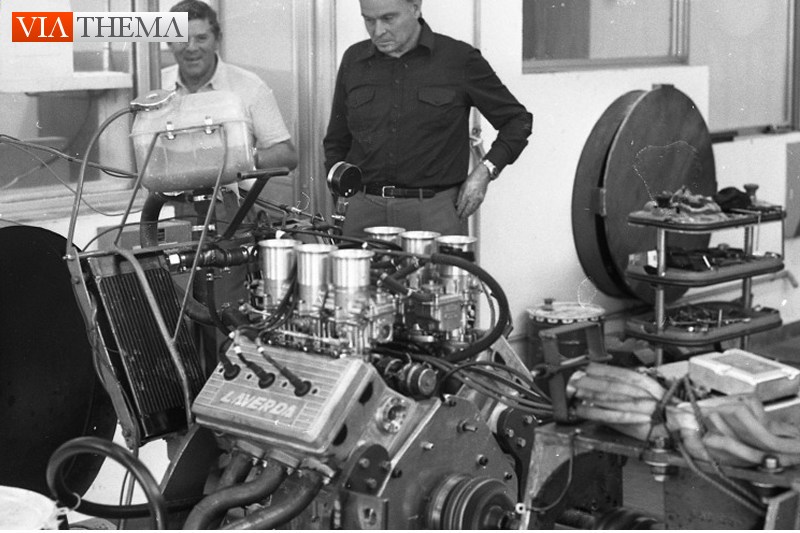

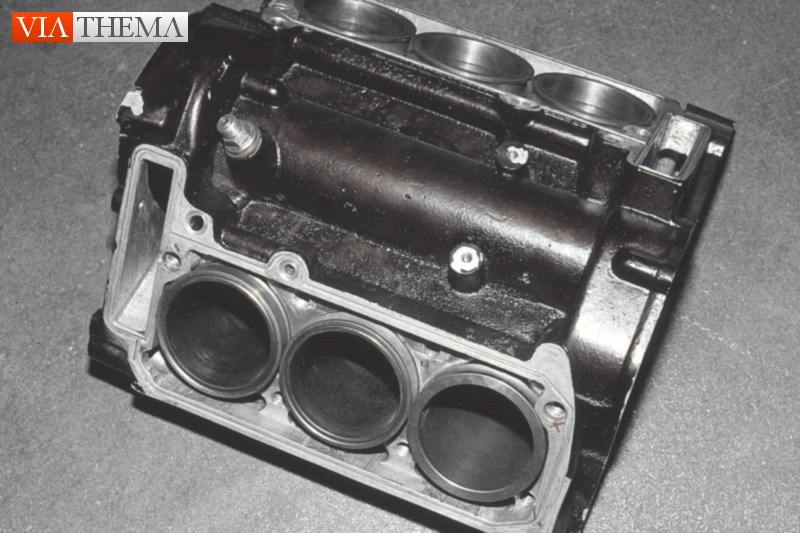

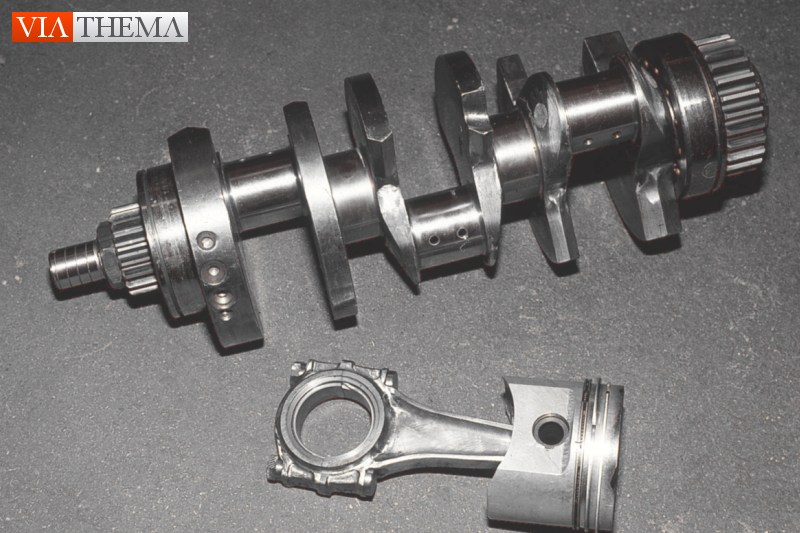

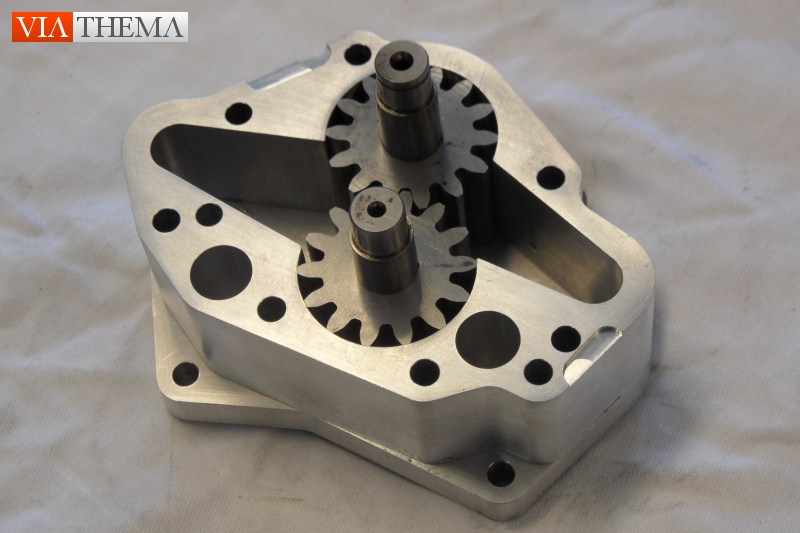

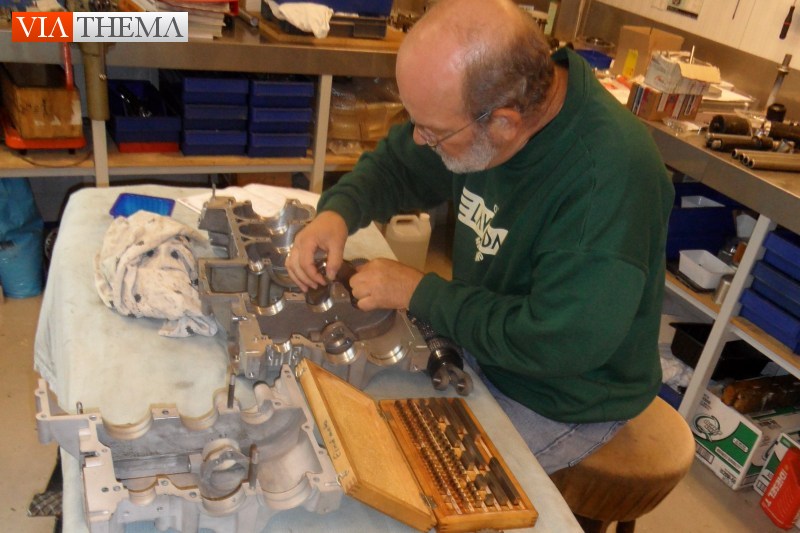

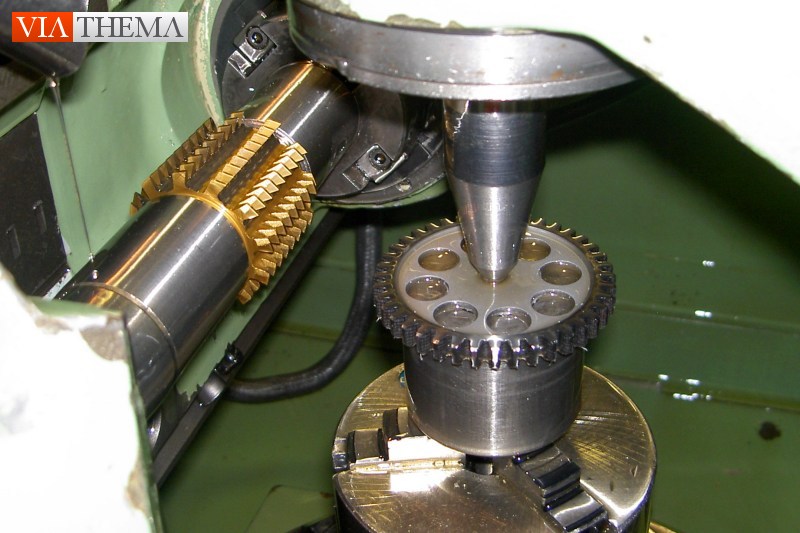

Laverda 1000 V6 Prototype ready for the 1977 EICMA Milano Motorcycle Exhibition Luciano Zen & Giulio Alfieri testing the Laverda 1000 V6 Engine Laverda 1000 V6 Engine on the Test Stand 1977 Laverda 1000 V6 Prototype Engine 1977 Laverda 1000 V6 Prototype without Fairing 1977 Laverda 1000 V6 Prototype Cylinderhead with small Intakes 1977 Laverda 1000 V6 Prototype Cylinderhead with Valves 1977 Laverda 1000 V6 Prototype Cylinder Block 1977 Laverda 1000 V6 Prototype Crankshaft, Piston & Rod 1977 Laverda 1000 V6 Prototype Gearbox 1977 Laverda 1000 V6 Prototype Engine being assembled 1977 Laverda 1000 V6 Prototype Engine as removed from the 1991 Zanini V6 Engine for the 1991 Zanini V6 & 1977 Prototype Engine side by side 1977 Laverda 1000 V6 Prototype with damaged Crankshaft 1977 Laverda 1000 V6 Prototype Piston & Connecting Rod Almost empty Prototype Cylinder Block ready for inspection Original & two remanufactured Laverda 1000 V6 Crankshafts Oilpumps for the 1977 Proto, 1978 Bol d'Or Racer & 1991 Zanini 1000 V6 Oilpump complete - 1977 Laverda 1000 V6 Prototype 1977 Laverda 1000 V6 Prototype Engine rebuild 1977 Laverda 1000 V6 Prototype cutting Teeth on an Oil Pump Gear 1977 Laverda 1000 V6 Prototype Gearbox Internals & Driveshafts 1977 Laverda 1000 V6 Prototype Gearbox Shifting Drum being machined 1977 Laverda 1000 V6 Prototype Gearbox Shifting Drum & Selector Forks All three Laverda 1000 V6 have different Drive Shaft dimensions Cor Dees shimming the Proto Gearbox Gearbox & Crankshaft ready to be assembled 1977 Prototype & 1991 Zanini Gearboxes, side by side The short Swingarm of the Prototype being welded in a Wig 1977 Laverda 1000 V6 Prototype Oil Tank in Seat 1977 Laverda 1000 V6 Prototype Tank & Seat 1977 Laverda 1000 V6 Prototype Factory Spare Frame 1977 Laverda 1000 V6 Prototype 1977 Laverda 1000 V6 Prototype 1977 Laverda 1000 V6 Prototype 30mm Carburators 1977 Laverda 1000 V6 Prototype 6x 30mm Dell'Orto 1977 Laverda 1000 V6 Prototype Engine: LAV.6\V*1001\R Laverda 1000 V6 Prototype on the 1977 Milano EICMA stand Laverda 1000 V6 Prototype on the 1977 Milano EICMA stand Laverda 1000 V6 Prototype on the 1977 Milano EICMA stand 1977 Laverda 1000 V6 Prototype 1977 Laverda 1000 V6 Prototype 1977 Laverda 1000 V6 Prototype 1977 Laverda 1000 V6 Prototype 1977 Laverda 1000 V6 Prototype

1977 Laverda 1000 V6 Prototype

1977 Laverda 1000 V6 prototype

  • Milan 1977 EICMA expo specifications prototype

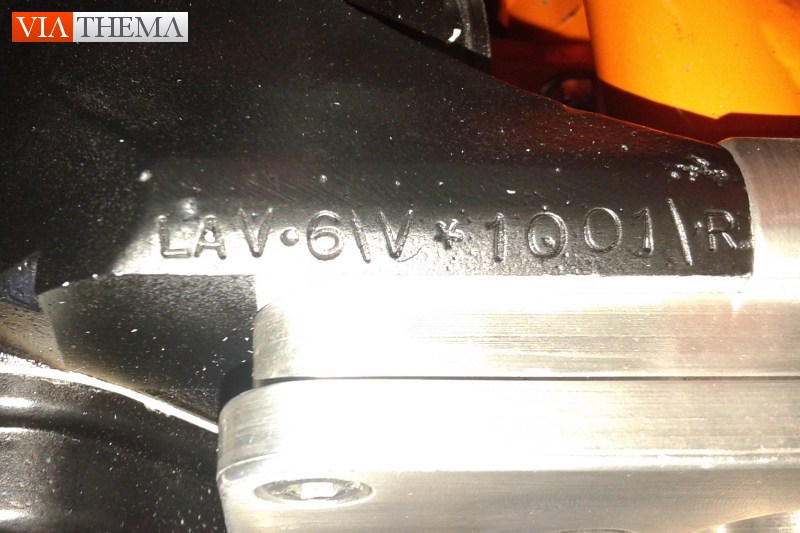

  • Original No *1001* engine & factory spare frame
  • Not for Sale

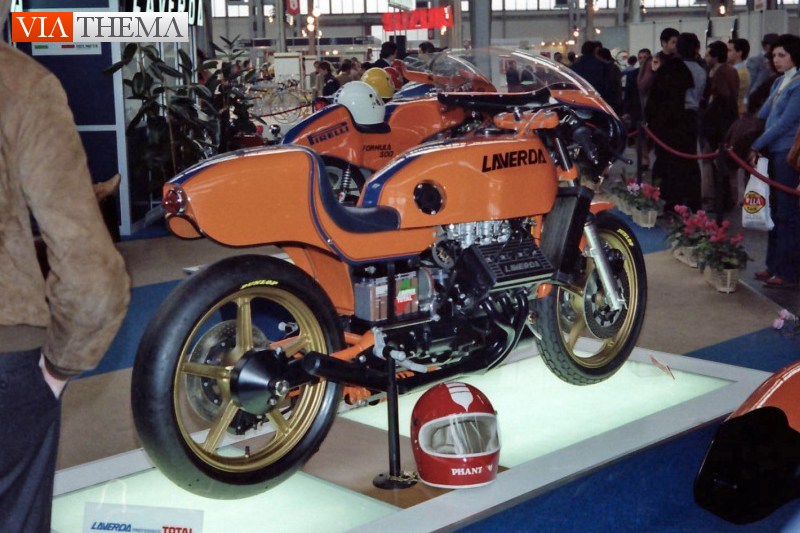

As with most experimental projects in the automotive and motorcycle industry, the original first complete Laverda 1000 V6 proto shown on the 1977 Milano EICMA exposition doesn't exist anymore in its original configuration.

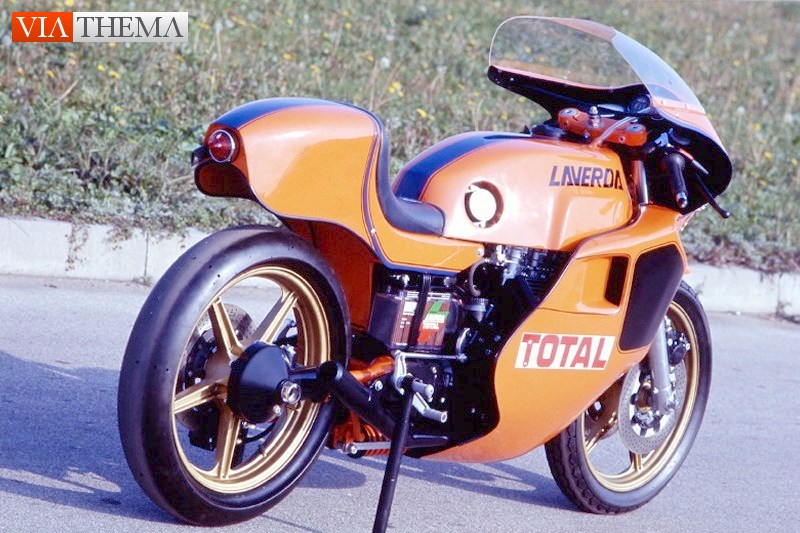

The Milano proto evolved from a show motorcycle into the 1978 Bol d'Or racing machine. Over the course of a year it was transformed from mono to dual rear shocks, with extensive work being done to the headstock, new bodywork as well as numerous other modifications, but most importantly it received an upgraded engine and improved fuel supply.

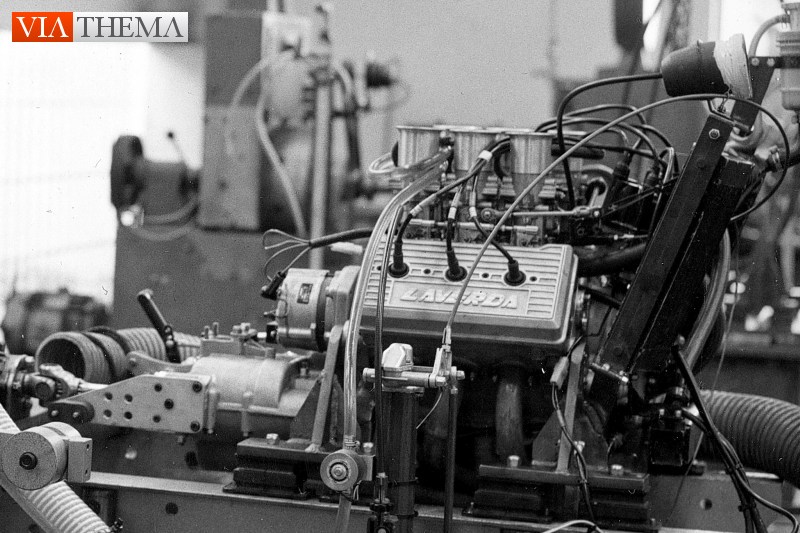

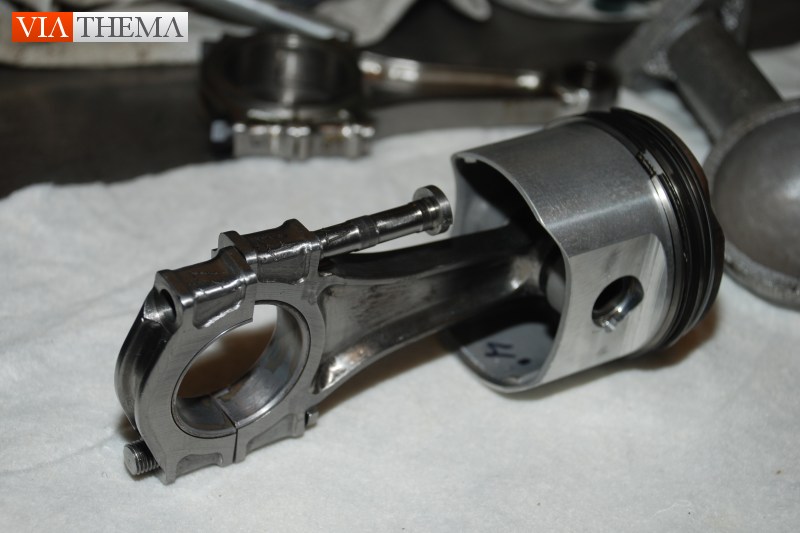

The replaced engine from the Milano prototype however, was the first ever V6 Laverda powerplant which was brought into life on the testbench and was used for intensive testing. It even broke a conrod with patchwork to the enginecases still being visible. This engine was later used in the 1991 Zanini V6 dummy and today *1001* forms the bases of the V6 prototype rebuild to EICMA 1977 expo specifications.

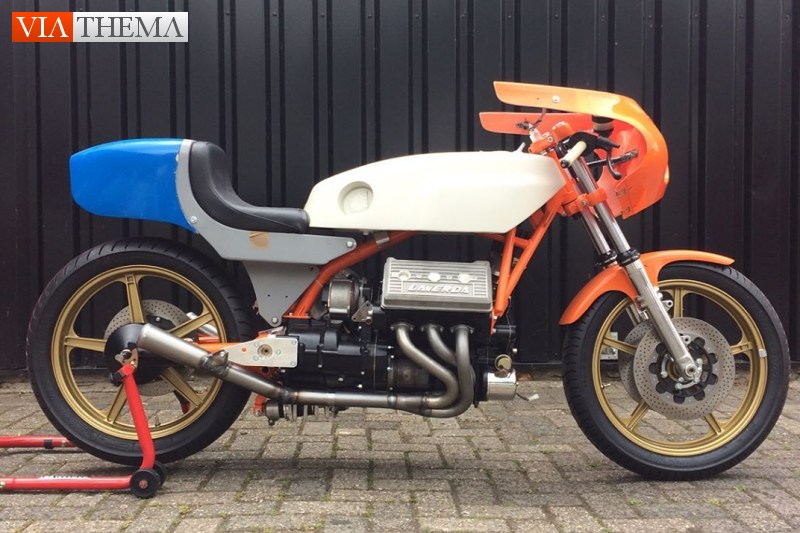

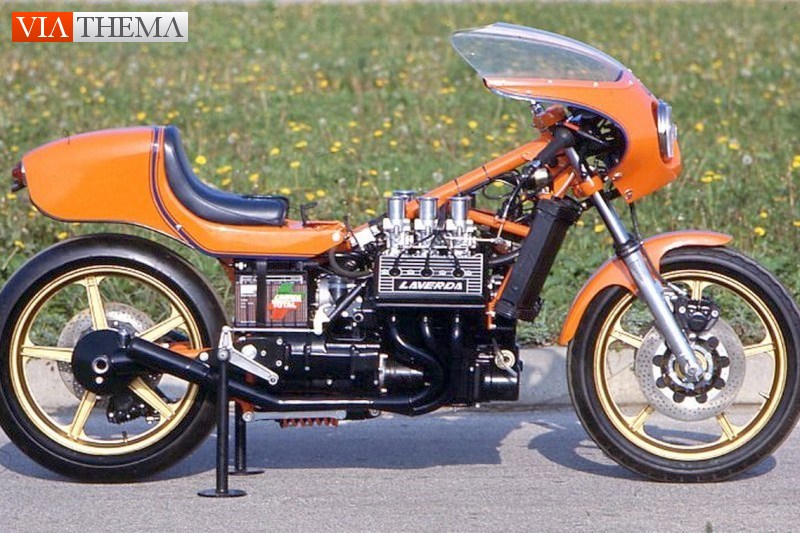

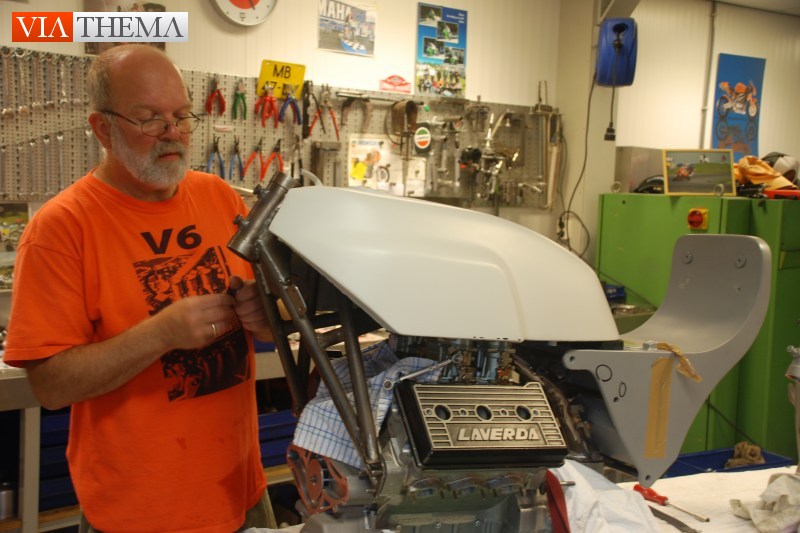

Build-up around an original factory spare frame and housing the original *1001* EICMA engine with 30 mm carburators, this proto is as close as possible to the original Milan show bike. This Laverda V6 is really unique in itself featuring the mono shock rear suspension with horizontal placed unit under the engine. It is also the most elegant Vee-Six design with blue pinstriped orange bodywork by the Stanga brothers of Motoplast.

The 1978 Bol d'Or 1000 V-Six continues to be owned by the Laverda family while the 1991 Zanini Laverda V6 mock-up just finished a complete eight year scratch build reconstruction in the hands of V6-specialist and owner Cor Dees.

This is a unique opportunity to acquire one of three Laverda 1000 V6 worldwide in existence, and the only V6 which will probably ever come up for sale. Cor Dees is in the process of rebuilding this prototype into a fully functional motorcycle and estimates it to be complete and available during the end of 2017.

Massimo Laverda was introduced to Giulio Alfieri by Laverda engineer Luciano Zen. Alfieri was an automotive engineer who was best known for his work with Maserati, where he had been employed from 1953 to 1973. During his tenure under the trident he had designed some of the most iconic Italian machines of the four-wheeled variety - he worked on the 250F Grand Prix racer, the famed Birdcage, and the 90-degree V6 from the Maserati Merak and Citroën SM.

Alfieri proposed just such an engine for Laverda, a miniaturized 90-degree V6 with liquid cooling and dual overhead cam heads. There was also talk of the possibility of developing a V4 or V-twin with the same architecture. Even in the 1970s the writing was on the wall for air-cooled two-valve engines, with increasingly stringent emissions laws looming on the horizon. Laverda needed to start working on more modern liquid-cooled architecture that would allow them to move forward.

They would begin by building a racing V6, with the intention of further developing and refining the platform to eventually release a detuned street version. Massimo was quite keen on the idea and work began in 1975, with Alfieri and designer Luciano Zen devoting one day a week to working on the new engine. According to Alfieri's plan they would begin by building a 1000cc V6 aimed at the sport touring market, with the possibility of a series of modular engines based off the same architecture.

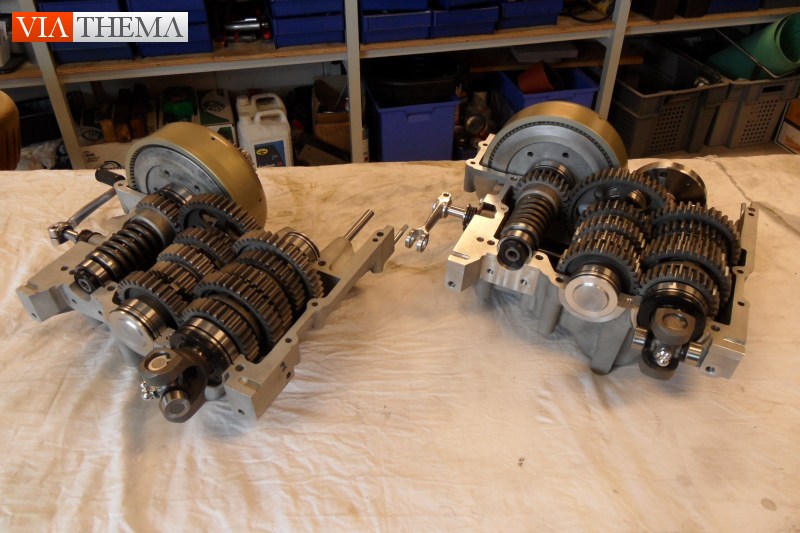

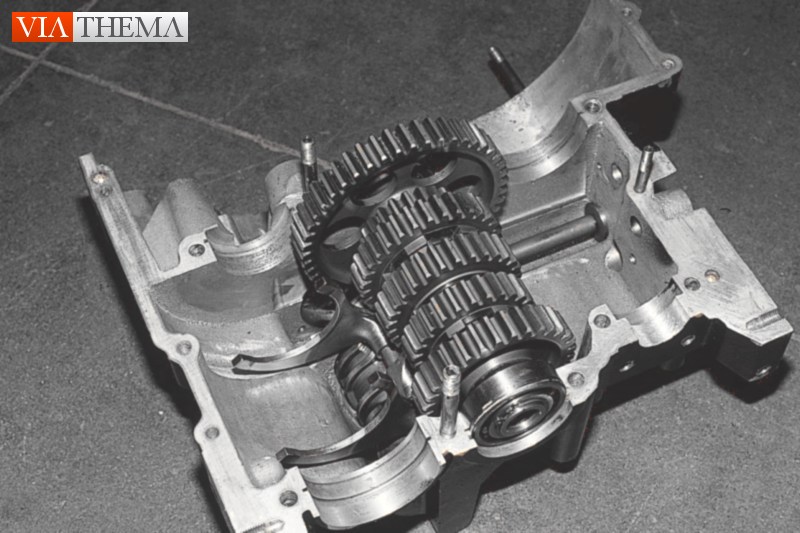

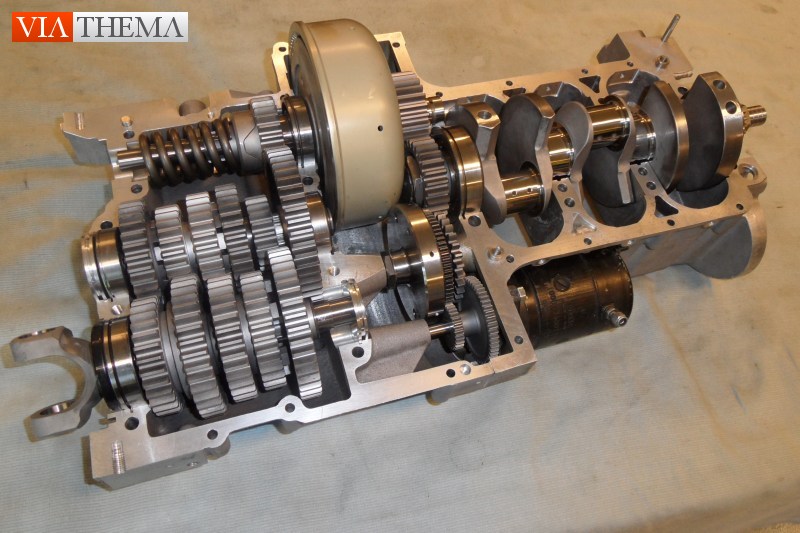

The engine is mounted longitudinally, with the gearbox bolted at the rear driving a shaft to the wheel. Viewed on its own, it looks like a tiny automotive powertrain lifted out of a rear-drive car. Unlike modern motorcycle engines, the V6 used a separate five-speed gearbox that was not unitized with the crankcases at all. Final drive was by shaft, an odd choice for a racing motorcycle but much easier to execute with the longitudinal layout. It even had an electric starter; a luxury for what was ostensibly a racing engine, but a common feature on machines intended for endurance racing.

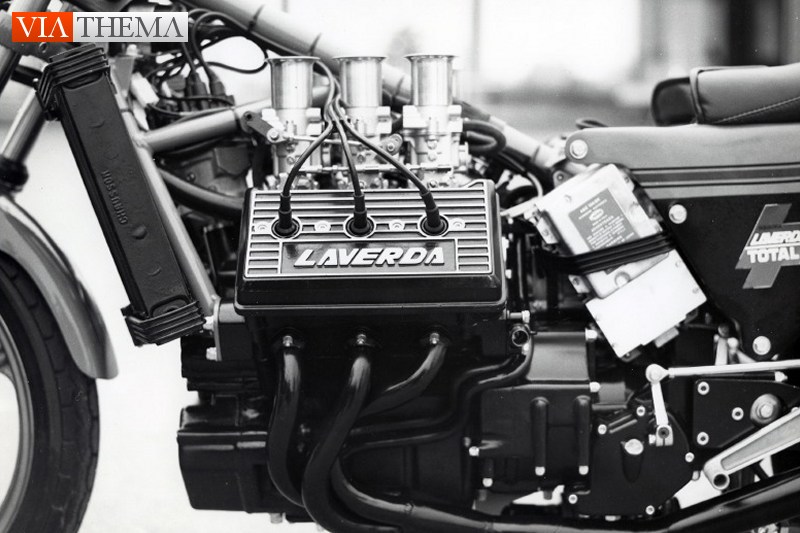

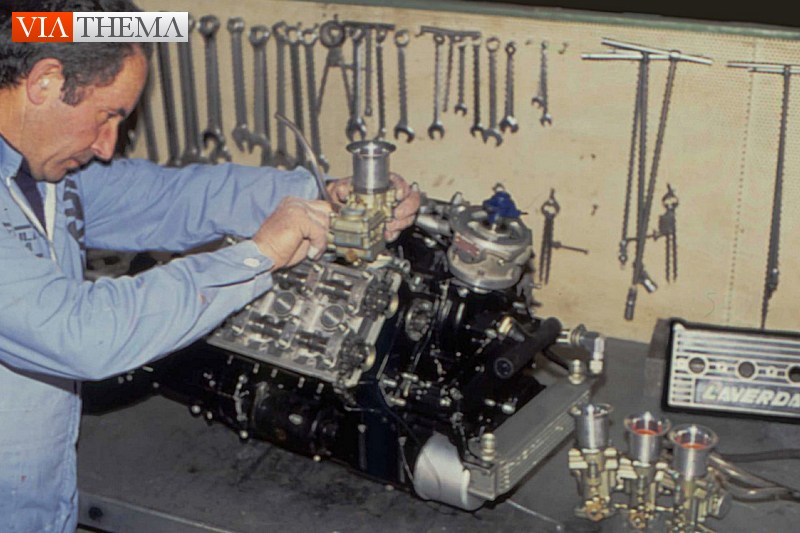

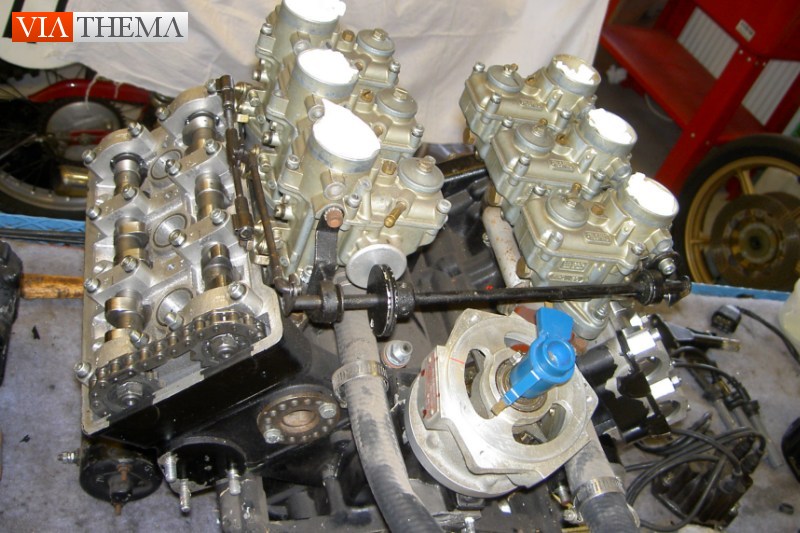

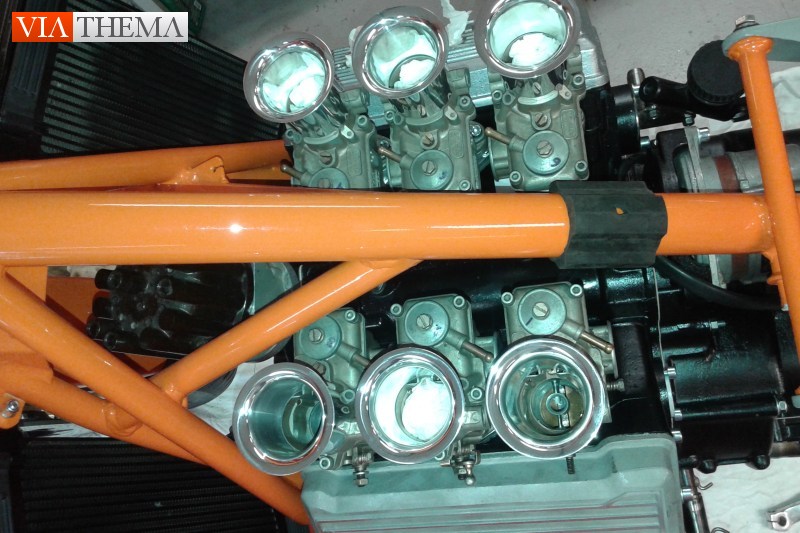

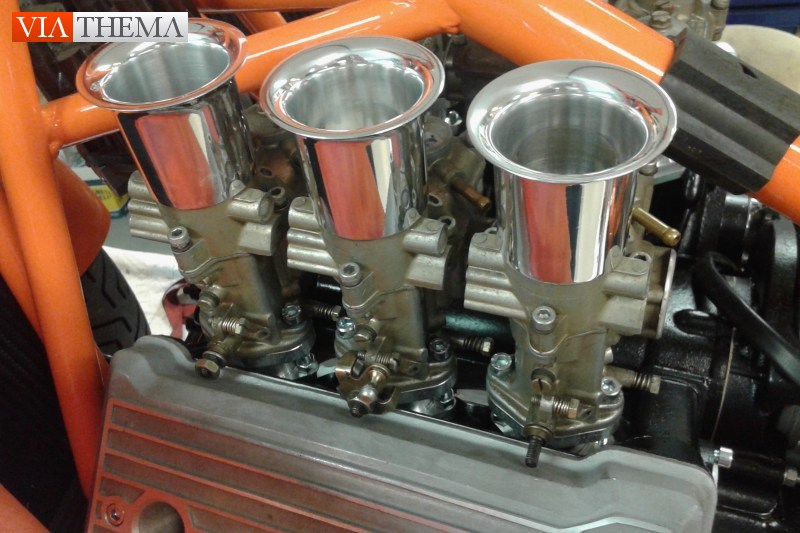

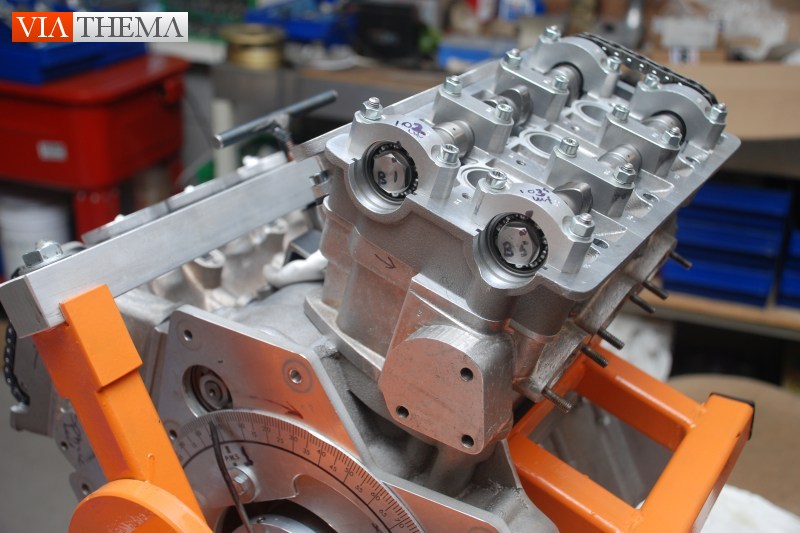

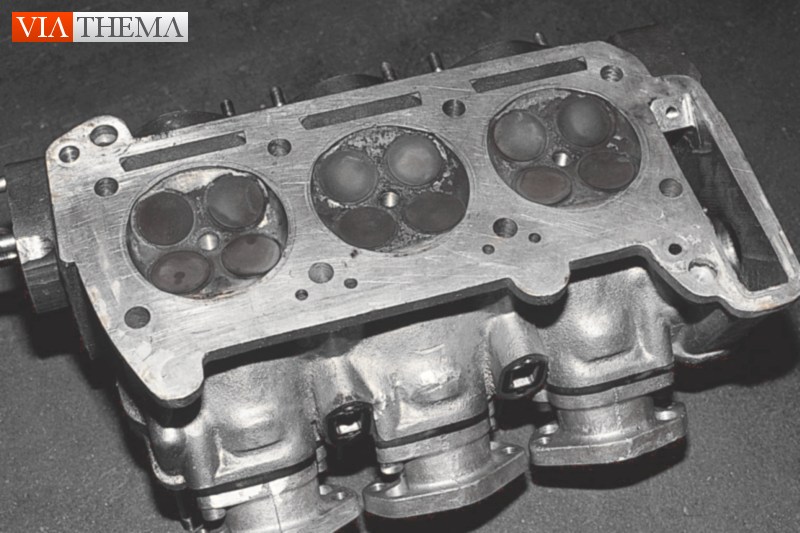

The 90-degree vee angle splayed the cylinder heads out considerably, making it a wide motor that had plenty of room between the cylinders to fit a sextet of specially designed downdraught Dell'Orto carburettors. Lucas fuel injection was tested but not adopted. Chain driven dual overhead cams drove 24 valves through shim-under-bucket tappets - normal practice on high performance motorcycle engines today, but uncommon at the time.

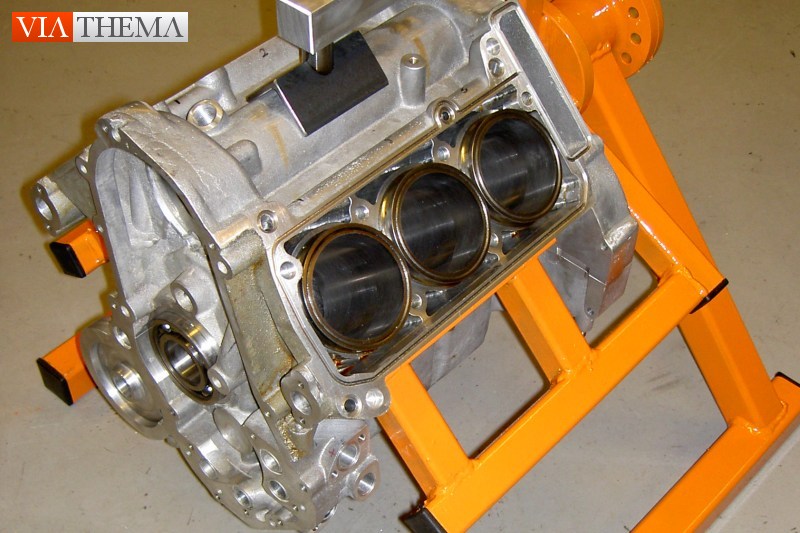

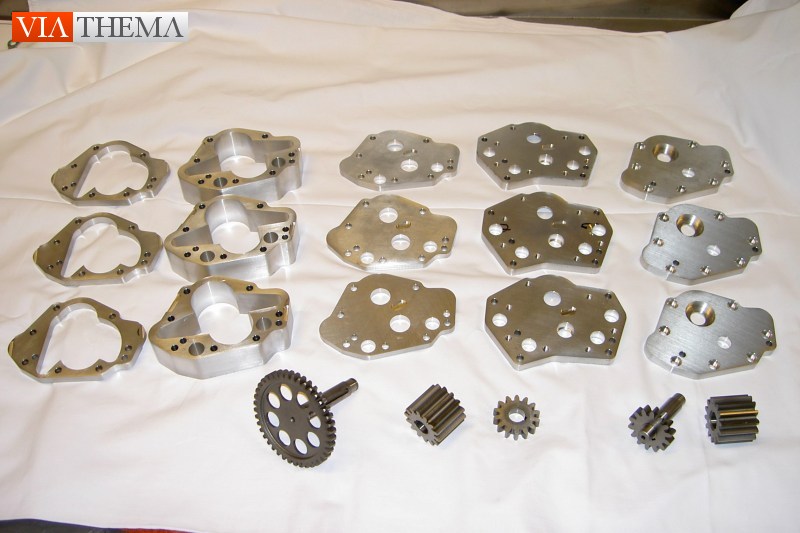

A special electronic ignition system was built by Marelli that was supposedly based on a V12 Ferrari unit, with a one-off distributor design. Cooling was via a pair of radiators mounted ahead of each cylinder bank, flanking the steering head. Lubrication was by dry sump with dual pumps, one for scavenging and one for feeding. Bore and stroke was 65x50mm, giving 996ccs, with a very modern pent-roof combustion chamber design with a shallow 24-degree included valve angle.

The first test runs produced an impressive 120hp, with further refinements netting 140 hp at 11800 rpm. This was Formula 1 territory - in the late 1970s a 3.0L Ford-Cosworth DFV was making around 465 hp, a specific output of 155 hp per litre. This point was not lost on the engineers - It was at this point that the project made an abrupt shift. Building a street-going sport tourer was no longer the priority, instead they would develop the prototype V6 into a powerful endurance racer.

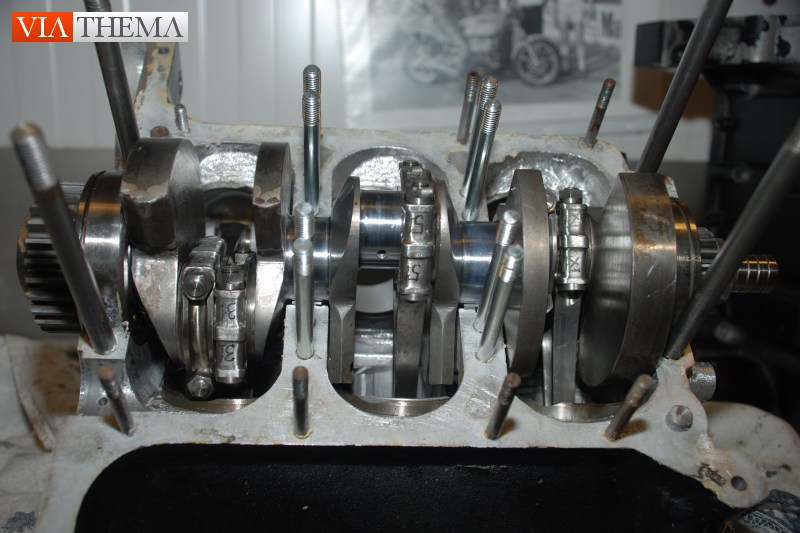

Unlike inline-sixes V6s are inherently unbalanced engines, particularly in 90-degree layouts with three-crankpin crankshafts like you'd find in the Laverda. These sorts of engines had been tried before as a way of producing a modular V6 on the architecture of an existing V8 design. V8s are balanced in 90-degree configurations but lop off two of the cylinders and you lose these good balance qualities.

You are essentially introducing the rocking couple and vibration problem of an inline-triple and multiplying it by two, and then tossing in the issue of uneven firing intervals for good measure. Laverda themselves encountered this problem with their early 120-degree crankshaft triples and introduced a 180-degree design to mitigate rocking couple (the flexing motion of the crank as the pistons move up and down) at the expense of some smoothness.

A V6 should ideally have a 120-degree firing interval to obtain good primary balance, which can be achieved if the vee angle is either 120- or 60-degrees. But to get a 90-degree design smoothed out, you have to either use two-throw split crankpins to achieve the magic 120-degree interval, or install a counterbalancer to cancel out the primary vibration.

The Laverda V6 used an ingenious solution - instead of adding the weight and complexity of a counterbalancing assembly, the rotation of existing components was used to balance the engine. Alfieri's design used a counter-rotating clutch and alternator that turned opposite to the crank. Not only did this smooth out the vibration, it also cancelled out the torque reaction of the longitudinal crankshaft. Blip the throttle on a BMW boxer or Moto Guzzi V-twin and the bike will lurch sideways as the mass of the crankshaft is accelerated - the V6 had no such problem.

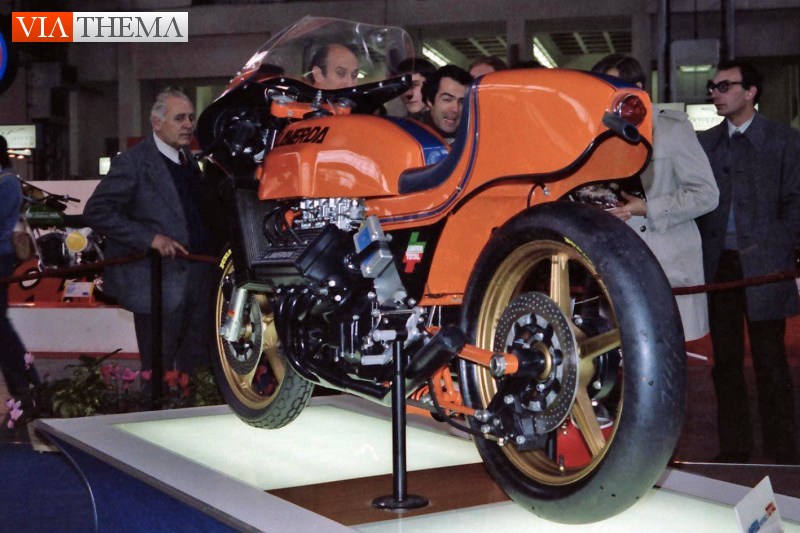

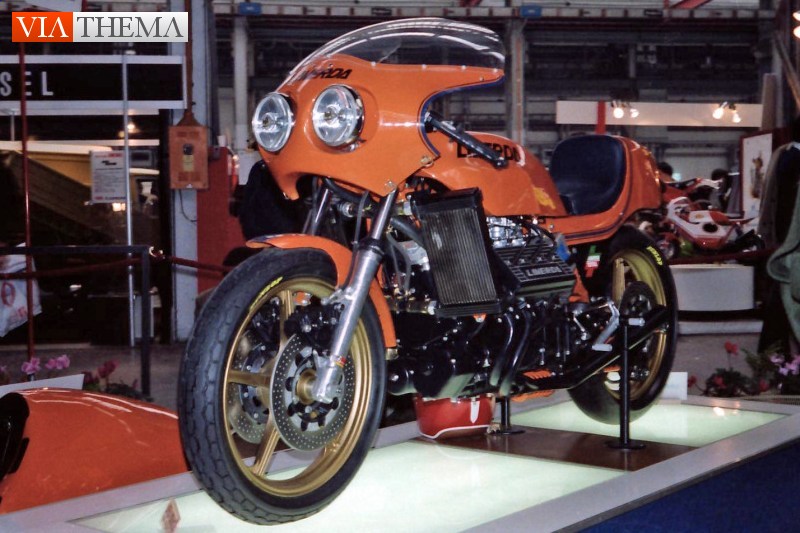

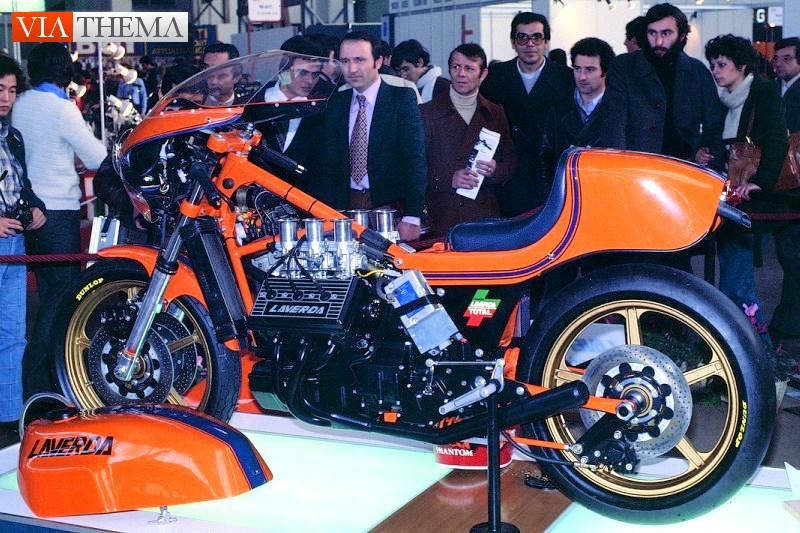

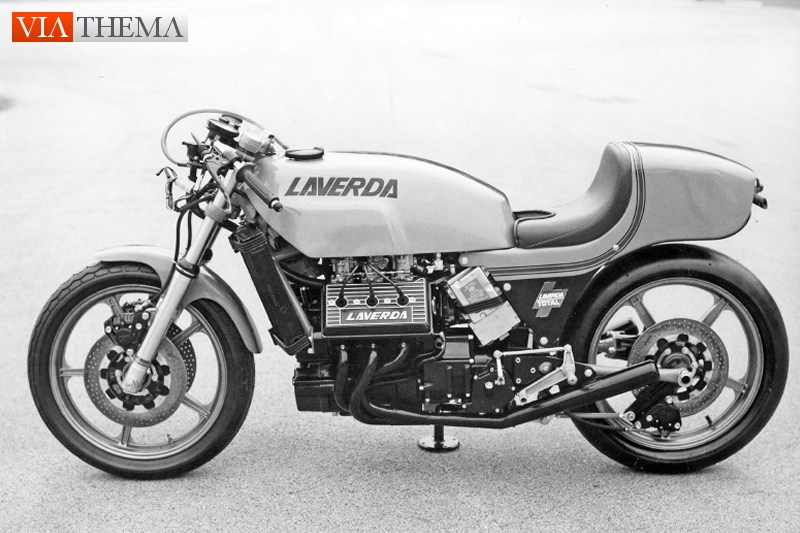

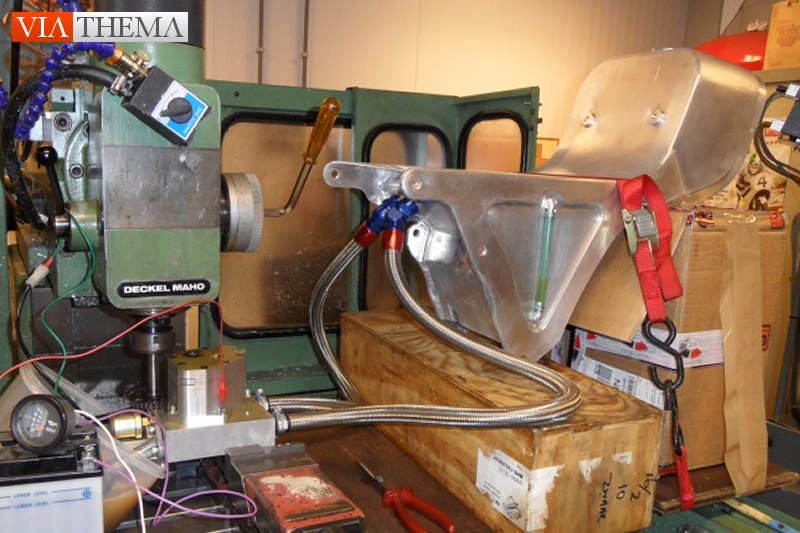

The completed prototype was unveiled at the 1977 Milan show. The chassis was a steel space frame design based around a large diameter tube backbone running above the vee, with the engine used as a stressed member. The oil tank was integrated into the seat - effectively it was the seat - and the full bodywork was painted in the traditional Laverda orange endurance-racer livery. Brakes were Brembo discs all round, with Marzocchi suspension front and rear. It wasn't what you would call pretty, with a wide, portly appearance made downright absurd with a pair of huge bug-eye headlamps for nighttime racing. You might charitably call it purposeful. But the V6 wasn't designed to look good - it was designed to win races.

There was one notable innovation outside of the engine that wowed onlookers in Milan - a monoshock rear suspension that used an under slung coilover mounted to the transmission case. In the days when most bikes still used dual-shock rear ends, here was a vision of the future of suspension design. Just one problem - it didn't work. The rear swingarm and monoshock were cobbled together to get the prototype on the stand at Milan.

The short swingarm exacerbated the jacking effect of the driveshaft, where the torque reaction of the rigid driveshaft makes the rear suspension jack up under acceleration and squat under deceleration, a scary proposition with 140hp on tap. According to Massimo Laverda the Milan prototype was unrideable. It was also found that the shock mounting would put too much strain onto the transmission casing, something that would have to be dealt with before it hit the track.

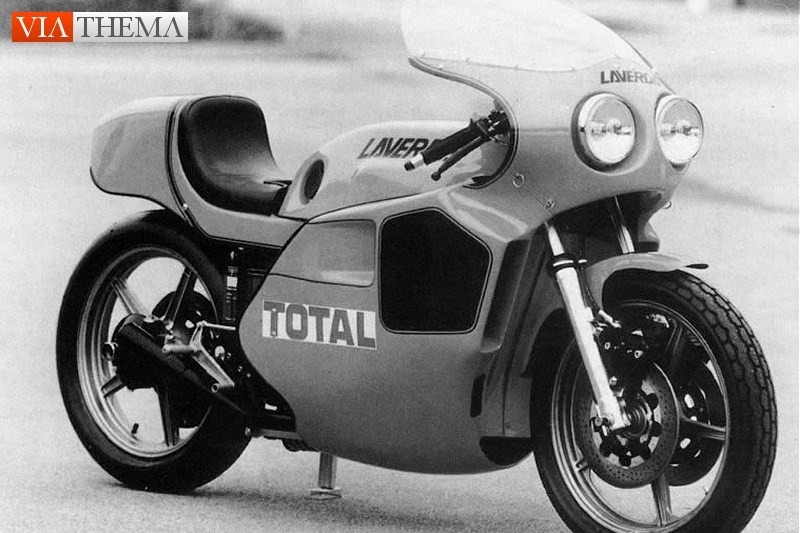

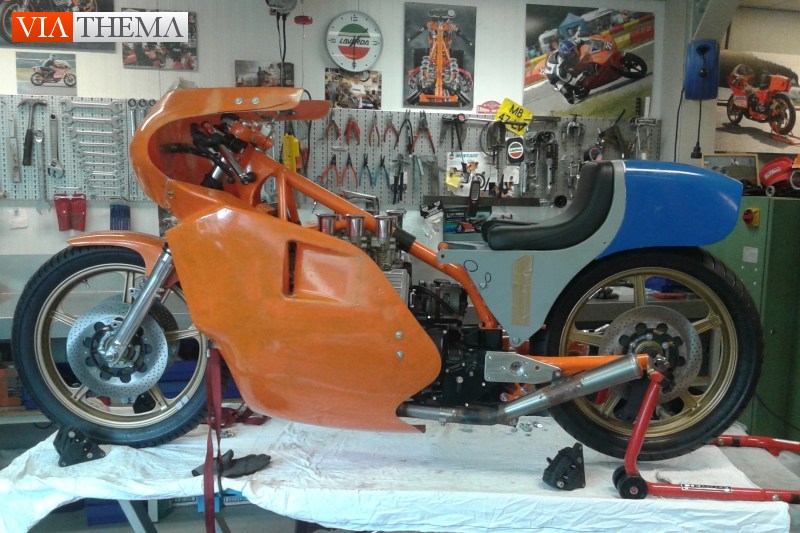

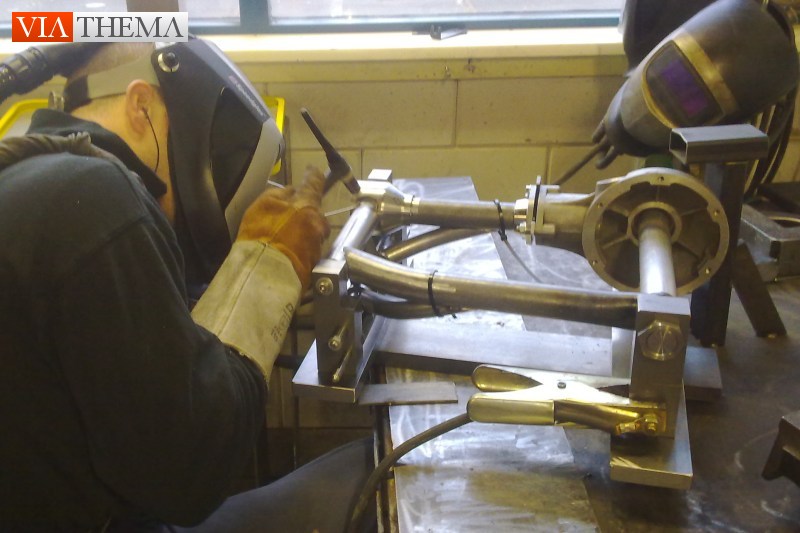

Some refining and fettling was done to the prototype design to make the V6 race worthy, most notably a complete redesign of the rear suspension and swingarm that ditched the monoshock idea for conventional dual shock setup using a pair of magnesium-bodied Marzocchi piggybacks. To help mitigate the shaft effect the pivot point of the swingarm was moved far forward, in front of the gearbox, to the centre of mass of the machine.

The new trellis-reinforced steel tube swingarm could then be made much longer to lessen the shaft effect by channelling the jacking force along a longer arm, lessening the force applied to the pivot. Additionally, with the pivot moved to the centre of mass the lifting effect was shifted towards the front suspension, masking the effect enough to make it unobtrusive. According to Laverda this setup reduced the suspension jacking by 50%, enough to be unnoticeable, but at the expense of some durability in the shaft assembly. This would prove to be a detail that would have significant consequences later on.

Despite the changes the V6 was still barely more than a priceless prototype, handling was not yet fully sorted, and development testing had been minimal before the V6 was scheduled to hit the track at the 1978 Bol d'Or 24-hour endurance race at Circuit Paul Ricard in southern France. It was the first year that the legendary event would be held at Ricard, and legend has it that nobody was prepared to see the V6 show up in the Laverda paddock. The competition had expected the usual three-cylinder machines from Breganze, thinking that the V6 was nothing more than an engineering exercise.

They were even more surprised when the V6 blitzed down the straightaway at a scarcely-believable 176 miles per hour, almost 20 miles an hour faster than the quickest 1000cc Honda on the track. And it did this while making some of the most glorious noise ever created by internal combustion. The snarling, raspy growl of the V6 warming up was spine tingling. But it paled in comparison to the vicious animal howl it made at full throttle - it was unearthly, angry, and sounded very much like an unmuffled Ferrari V12, only better.

Alan Cathcart had the rare opportunity to sample the V6 in 1991 and noted that the engine was incredibly friendly and tractable for a high-powered racer from the 70s. He was astonished at the broad, smooth spread of power, expecting it to be a fire-spitting, high-strung demon. The prospect of stuffing the V6 into a street-legal chassis wasn't quite as insane as it might have seemed, considering the impeccable manners of the racing engine. Word was that the factory had in fact stuck Prova plates on the prototype and ridden it on the streets around the factory during the development process.

While it was fast and loud, the V6 was hampered by its weight - well over 500 pounds, which was very heavy for a racing machine. Handling wasn't fully developed due to the limited testing time, so it couldn't dice with more nimble machinery in the corners. Conservative geometry made the V6 a slow steering machine with a 59-inch wheelbase and a 30-degree steering angle that mirrored the geometry of the 1970s Ducati 900 Super Sport. Laverda settled into their traditional routine to try and beat the competition by outlasting them.

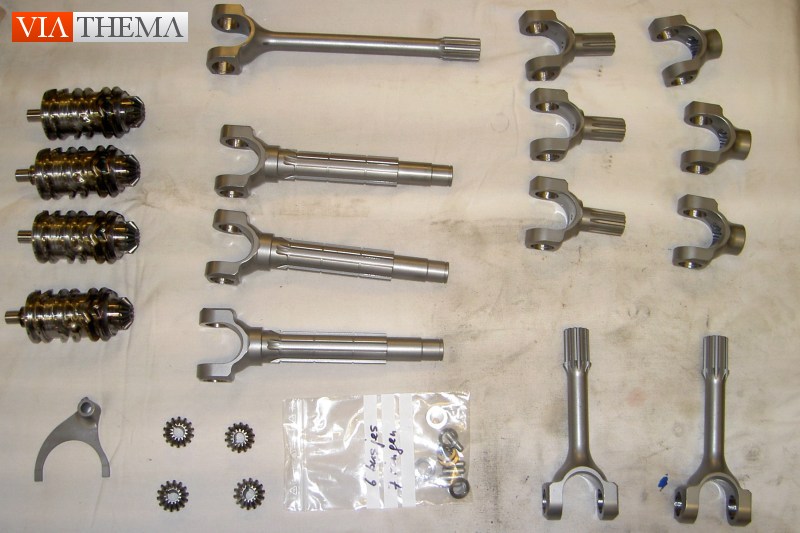

Unfortunately before the midpoint of the race the universal joint between the gearbox and the driveshaft failed and the V6 was out. The revised rear suspension design had fixed the worst of the handling woes but put too much strain on the driveshaft joints by making the swingarm considerably longer than the driveshaft. The engineers had recognised the issue but without enough time to develop a better setup they were forced to hit the track with the flawed setup. Supposedly they predicted the life of the joints to be around nine hours of racing - it broke after eight and a half.

After the Bol d'Or Laverda had difficulty maintaining funding for the expensive V6 project, which had become dubbed the World's Fastest Laboratory. It was a glamorous money pit that had failed to secure victory on the track, and the possibility of applying the V6's technology to production was a long way off. Costs had spiraled out of control when management shifted the focus of the project from street to track.

The stock holders and Laverda family members cut funding to the project, and with it the possibility of a series of street engines based on Alfieri's architecture. Then for the 1979 season the rulebooks were modified to exclude machines of more than four cylinders from endurance racing, which made the V6 an expensive orphan with no possibility of future competition. The project was shelved and the only complete V6, which was left as it had competed at Paul Ricard, became a museum piece. Eventually it was moved into Massimo Laverda's home, living a sheltered life for many years, with occasional parade laps and start ups in the office.

The 1980s came and Laverda found itself rapidly falling behind the competition on the street and the track. They continued to rely on their ageing air-cooled triples, which were beginning to look outdated, coarse, and overpriced compared to the faster and cheaper machines from the East. The company was placed in receivership and then put under Italian government protection. Massimo Laverda left the company in 1985, and his brother Piero followed in 1987, ending the Laverda family's involvement with the company.

In 1990 Laverda was acquired by Gruppo Zanini, an Italian investment group that formed a partnership with the Japanese Shinken corporation. Initial plans were to apply the brand name to a line of accessories and apparel alongside an updated middleweight parallel twins based on the Atlas/Alpina/Montjuic air-cooled architecture. There was, however, one big surprise in store.

In 1991 the company unveiled a new V6, closely modelled on the Bol d'Or racer, which was slated to become a limited production machine sold for 60 million lire (42.000 USD), which would have made it one of the most expensive motorcycles in the world until the Honda NR750 came along in 1992. 25 examples would be made and reception was quite enthusiastic - 19 pre-orders were taken.

However it was not to be. The 1991 bike was cobbled together from spares left in the Laverda factory parts stock. It was shot for publications and brochures, but never started. Rumours began to circulate that the bike had no engine internals and could never run. Then the price was adjusted to 85 million lire (60.000 USD), prompting several orders to be cancelled and for the project to be dropped.

The company again went through a tumultuous period, producing only a handful of the new Bakker-framed 668cc twins before Gruppo Zanini went bankrupt. In 1994 investor Francesco Tognon purchased the company and moved production from Breganze to nearby Zanè. Things improved for a brief period, but by 2000 the company was bought out by Aprilia. Under Aprilia ownership the factory was liquidated, and the lineup of twins mothballed. When Piaggio bought Aprilia in 2004 the remaining Laverda assets were sold off and the company shuttered, ending any hope of reviving the Zanè or Breganze works.

The Zanini V6 stayed in the company for several years, spending some time in Tognon's home during his time at the helm. When Aprilia took over it was sold to a private Italian collector and disappeared from public view. It resurfaced in 2007 when it was purchased by collector and Dutch Laverda Museum president Cor Dees.

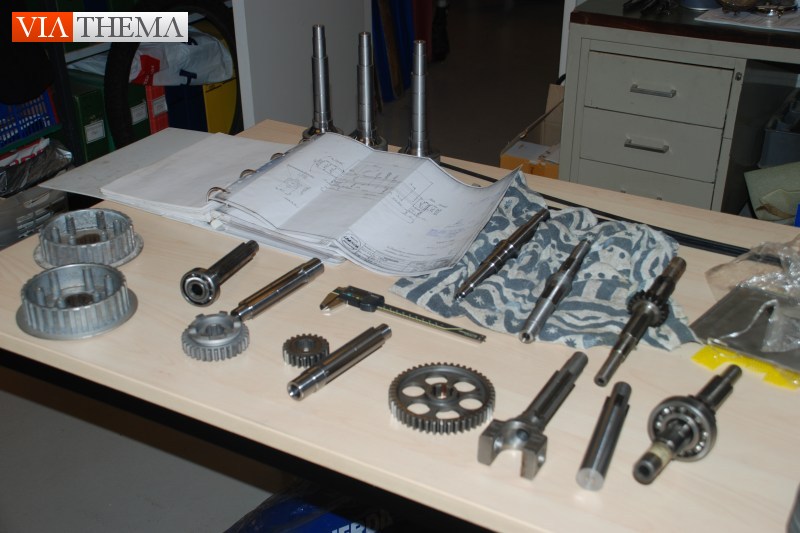

Dees had purchased the remaining factory V6 spares and drawings in 1999 and was attempting to build a complete, running machine despite lacking a significant number of components, all of which he had to develop and manufacture from scratch. When he had the opportunity to purchase the famous 1991 bike, his V6 rebuild became two V6 rebuilds - one, to get the Zanini machine into running order, and two, to finish building his original built-from-spares machine as a replica of the 1977 prototype, using a spare factory prototype frame.

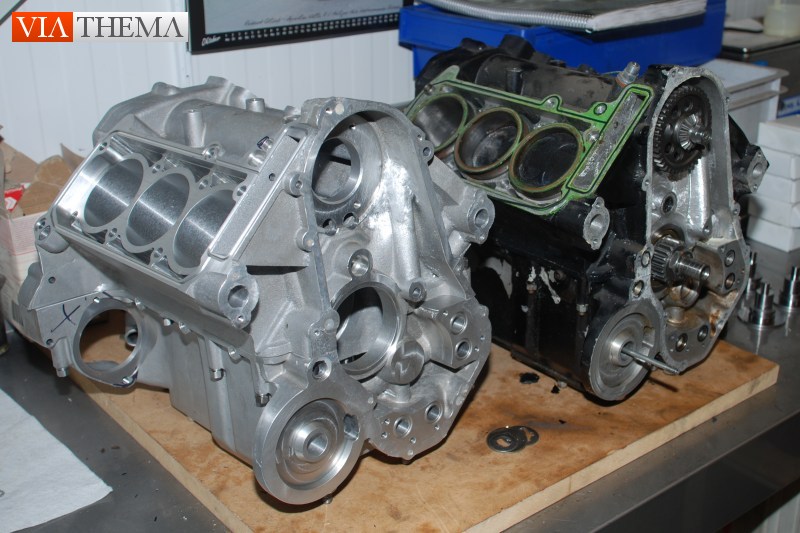

As rumoured it was discovered that the Zanini bike was missing some important components - the gearbox casing was pretty much empty, and the ignition system was incomplete - but much to Dees' surprise the engine itself was more or less complete and was in fact the engine from the 1977 prototype. He ended up pulling the Zanini engine to install it into his prototype replica, while his built-from-spares Bol d'Or spec motor would be installed in its place. Dees has had his work cut out for him as many of the components of the V6 were unique and had to be rebuilt from scratch using original plans and the input of people involved in the project.

The original factory V6 remained in Massimo Laverda's collection after he left the company. As his health began to decline, he entrusted care of the priceless machine to his brother Piero. Piero and his son Giovanni formed Laverda Corse, a company dedicated to preserving and racing vintage Breganze machines. After Massimo passed away in 2005 Piero inherited the V6 and he and Giovanni began to campaign it at classic events around the world. Piero even installed louder open pipe exhausts to emphasize the machine's iconic wail, which continues to reduce grown men to blubbering messes and inspire hyperbolic prose wherever it turns a wheel in anger.

When the 1978 V6 needs some maintenance or spare parts, Piero entrusts Cor Dees with the job - at one point Dees was working on the only three V6s in the world at once. In addition to gradually restoring his pair of machines, Dees has been producing spare parts whenever he has to fabricate a replacement item. He is effectively the one man keeping the V6 alive. Thanks to his tireless work, we may someday witness the glorious cacophony of three Laverda V6s snarling into life simultaneously.

The Laverda V6 was the product of a unique set of circumstances and a bygone generation of racing when the rules were still open and innovation was still possible. Laverda management set out to build a world-beating flagship, and they succeeded - but economic circumstances, rushed development, rule changes, and plain bad luck conspired against the magnificent V6.

The World's Fastest Laboratory remained nothing more than an experiment, a howling orange missile that wowed the world for a brief period in the late 1970s before it bowed out and was nearly forgotten. With Laverda long buried by economic woes and takeovers, it remains to Piero, Giovanni and Cor to keep the V6 legacy alive and maintain the spine-tingling wail for future generations to enjoy.
